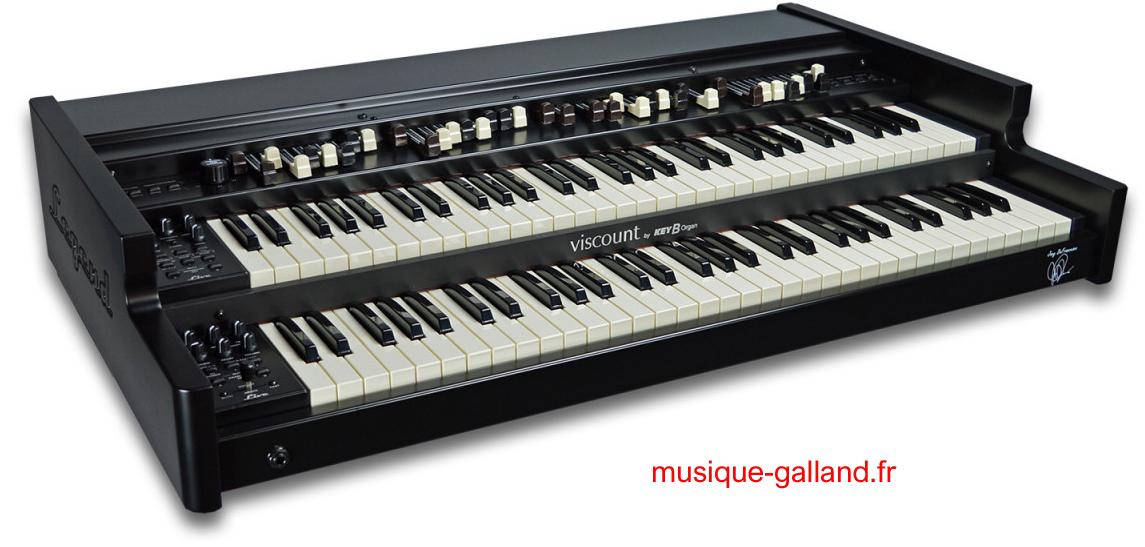

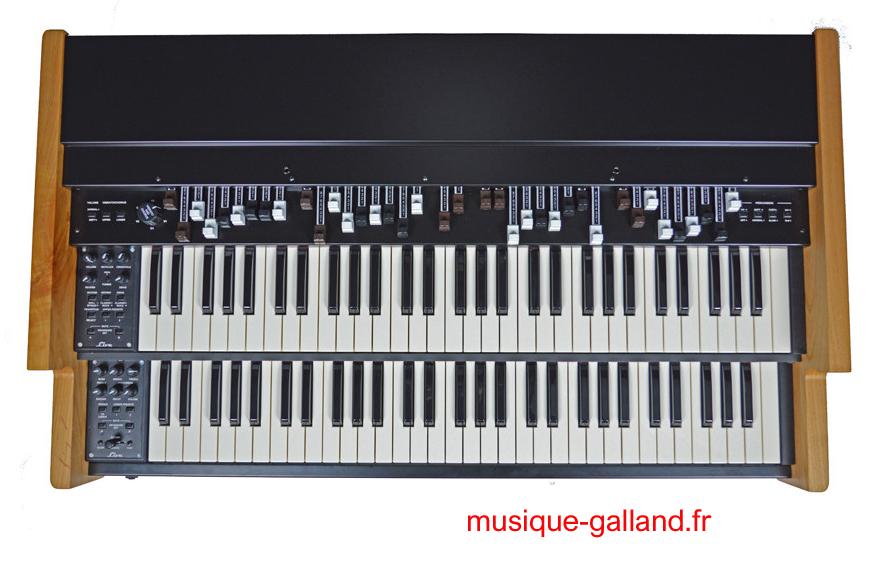

ORGUE portable 2 claviers VISCOUNT LEGEND LIVE

• Upper Keyboard - 61 notes waterfall keyboard
• Lower Keyboard - 61 notes waterfall keyboard
• TechnologyTMT (Tonewheel Modeling Technology)
• Transposer-6 +5 semitones
• Fine Tuning+/- ¼ tone
• Crosstalk Unique crosstalk created for each tonewheel model
• Tonewheel model'30, '50, '70, Alt. 1, Alt. 2, Alt. 3
• String BassOn/Off, Decay Control
• On/Off, Volume Soft/Normal, Decay Fast/Slow, Harmonic Percussion 2nd / 3rd Percussion Level and Percussion Decay Controls
• Dimensions 101 x 18 x 59 cm
• Poids 18 kg
• Finitions Noir satin  /  aulne américain

• Controls- Upper Front Panel: Volume; Reverb; Drive; Keyclick; Tuning; Crosstalk; Rotary; Transpose; Upper preset (1/2); Drawbars set (A/B/MUTE)
• Lower Front Panel: Tone controls; Pedal Sustain, Percussion Decay; Percussion Volume; Pedals to lower; Lower presets (1/2); Drawbars set; (A/B/MUTE); Rotary speed control.
• Drawbars - Upper2 sets of nine drawbars: 16' - 5 1/3' - 8' - 4' - 2 2/3' - 2' - 1 3/5' - 1 1/3' - 1'
• Drawbars - Lower2 sets of nine drawbars: 16' - 5 1/3' - 8' - 4' - 2 2/3' - 2' - 1 3/5' - 1 1/3' - 1'
• Drawbars - Upper PresetUpper Drawbar Set A or Set B + 2 presets and Upper MIDI Local on/off
• Drawbars - Lower PresetLower Drawbar Set A or Set B + 2 presets and Lower MIDI Local on/off
• Drawbars - Pedals2 drawbars: 16' & 8'
• Midi In, Out, ThruOut 1, Out 2, In, Thru, Pedalboard In
• ConnectionsOUTPUT: L & R Line Out 6.35 mm jacks; Pedals Direct Out 6,35 mm jack (without C/V and Rotary emulation); 11 pin Rotary Speaker (without Rotary emulation); 2 Stereo headphone 6,35 mm jacks; TRS Digital Expression Pedal 6,35 mm jack; Rotary emulation Footswitch 6,35 mm jack; USB to HOST; USB HOST type A (Power charger only); FX send.
• INPUT: Audio input mono with adjusting gain pot; FX return
